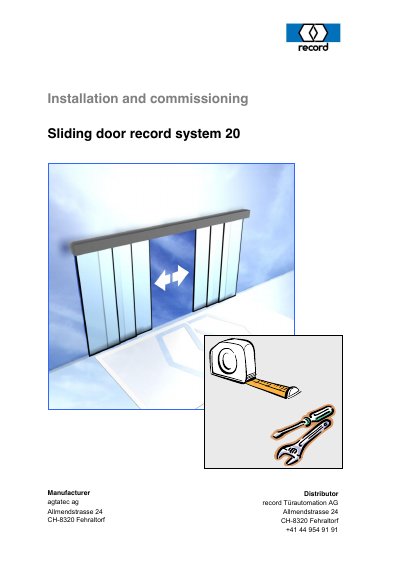

Installation and commissioning guide for the agtatec Sliding Door Record System 20, covering safety, technical data, and setup steps.
This guide provides detailed instructions for the installation, commissioning, and safe operation of the agtatec Sliding Door Record System 20. It is intended for qualified installers and includes safety regulations, preparation steps, and technical specifications.
The document covers general remarks, safety instructions, technical data for STA/TSA/TOS variants, step‑by‑step installation procedures, control module wiring, commissioning procedures, and an appendix with extra components and adjustments.
| Clear passage height (STA) | Variable, see table |
|---|---|
| Maximum authorized door weight (STA) | D‑STA 2 × 120 kg, 2 × 150 kg, 2 × 75 kg; E‑STA 1 × 150 kg, 1 × 120 kg |
| Mains voltage (STA) | 100‑240 VAC 50/60 Hz |
| Rated power (STA) | 90 watts (D‑STA), 85 watts (E‑STA) |
| Fuse protection (STA) | 3.15 amps |
The STA system operates on a mains voltage of 100‑240 VAC at 50/60 Hz.
A risk assessment must be carried out for the whole installation and safety devices must never be removed or disabled.
