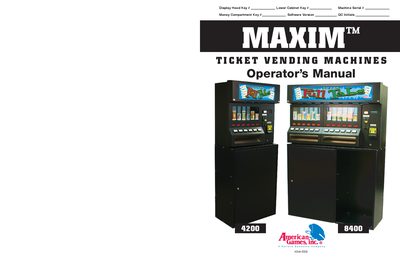

This manual provides operating instructions, maintenance procedures, and specifications for the AGI Maxim 4200 ticket vending machine.
The AGI Maxim 4200 is a compact ticket vending machine designed for indoor use. It features a pull-tab counting method with virtually zero percent error and includes options for bill acceptance (1, 5, 10, and 20 dollar bills) and coin mechanisms. The unit can be wall-mounted or placed in an optional locking cabinet.
| Dimensions (Model 4200) | 27" high x 27" wide x 15" deep |
|---|---|
| Lower Cabinet Dimensions (Model 4200) | 36" high x 25.5" wide x 15.125" deep |
| Operating Supply Voltage | 117 VAC 60 Hz |
| System Voltage Range | 95 to 130 VAC |
| Operating Ambient Temperature | 50°F to 120°F |
| Ticket Size | 1 7/8" x 2 5/8" to 1 7/8" x 4 1/4" |
| Bin Capacity | 700 tickets each |
The factory-set manager PIN is 111.
You must enter your three-digit Personal Identification Number (PIN) within 20 seconds, or the alarm will sound.
It accepts $1, $5, $10, and $20 bills.
Bins accept ticket pricing up to $9.75 in 25-cent increments.
