This manual covers safety, specifications, hardware installation, BIOS settings, watchdog software usage, and driver installation for AEM H81-814 and…

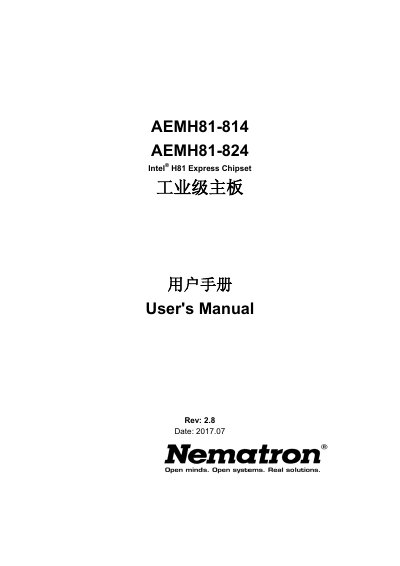

The document is a user manual for the AEM H81-814 and AEM H81-824 industrial-grade motherboards based on the Intel H81 Express Chipset. It provides comprehensive instructions for hardware installation, including CPU, memory, and peripheral connections, as well as BIOS configuration and driver setup.
The manual details specific features such as support for LGA1150 processors, DDR3 memory, multiple SATA interfaces, and various USB ports. It also includes a dedicated section on the 'Watchdog' software designed to automatically restart the system in case of crashes or deadlocks, ensuring continuous operation in unattended industrial environments. This manual is written in Chinese.
| Processor Support | Intel Core i7/i5/i3, Pentium, Celeron (LGA1150) |
|---|---|
| Chipset | Intel H81 Express Chipset |
| Memory Support | 2x DDR3 DIMM slots, up to 16GB |
| SATA Interfaces | 4 SATA ports (6Gb/s and 3Gb/s) |
| USB Ports | 8 total (2x USB 3.0, 6x USB 2.0) |
| Form Factor | ATX |
The H81-824 model has an additional network card and supports 10 COM ports, whereas the H81-814 has one network card and only 2 COM ports.
The Watchdog software monitors system status and automatically resets the hardware circuit to restart the system if it crashes or freezes.
The software is designed to run under Windows systems.
