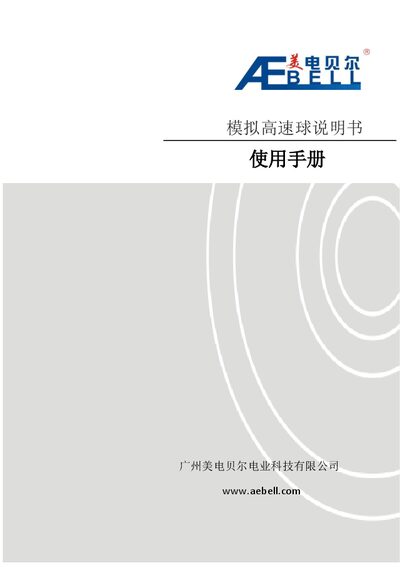

This manual provides installation, configuration, and operation instructions for Aebell analog high‑speed PTZ camera.
The analog high‑speed PTZ camera integrates a high‑performance camera module, precision motor‑driven gimbal, and advanced functions such as auto‑focus, auto‑white‑balance, infrared night vision, and 3D intelligent positioning. It supports multiple protocols (PELCO‑D, PELCO‑P, TA, etc.) and offers extensive scanning and preset capabilities for comprehensive surveillance.
The document guides users through safety precautions, installation preparation, mounting methods, initial settings, dip‑switch configuration, RS485 communication basics, troubleshooting, and cable‑distance recommendations, ensuring proper setup and reliable operation. This manual is written in Chinese.
| Power Supply | DC12V/5A (standard) |
|---|---|
| Ingress Protection | IP66 (dust‑tight, waterproof) |
| Horizontal Rotation | 360° continuous |
| Vertical Rotation | -5° to 92° |
| Preset Points | Supports 255 preset points |
| IR Lamp Power Levels | 10 adjustable levels |
Use the dip‑switch on the side of the camera: SW1 selects protocol and baud rate, while SW2 sets the address code.
Install the camera in a well‑ventilated area, ensure the IP66 rating, and avoid exposing it to rain or high humidity.
