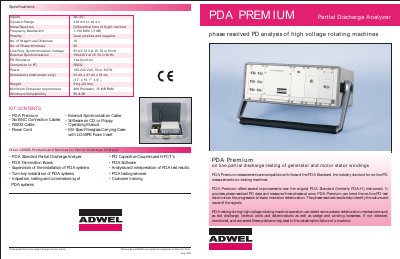

Product specifications and features for the ADWEL PDA PREMIUM Partial Discharge Analyzer used for testing high voltage rotating machines.
The ADWEL PDA PREMIUM Partial Discharge Analyzer is designed for phase-resolved partial discharge analysis of high voltage rotating machines, such as generator and motor stator windings. It measures partial discharge activity using capacitive couplers or High Frequency Current Transformers (HFCTs) and provides data for six inputs to measure three phases simultaneously.
The instrument offers phase-resolved PD data, NQN trending, and surface maps to identify the nature and cause of signals, such as slot discharge or internal voids. It features an external synchronization input and allows data export to Excel for analysis and report generation.
| Dynamic Range | ±16 mV to ±6.4 V |
|---|---|
| Frequency Bandwidth | 1-150 MHz (-3 dB) |
| No. of Magnitude Channels | 16 |
| No. of Phase Windows | 60 |
| Voltage Input | 100-240 V at 25, 50 or 60 Hz |
| Power Input | 100-240 VAC, 50 or 60 Hz |
| Connection to PC | RS232 |
| Minimum Computer requirement | 486 Processor, 16 MB RAM |
| Windows Compatibility | 95 & 98 |
| Dimensions (instrument only) | 43 cm x 41 cm x 16 cm |
| Weight | 9 Kg (20 lbs.) |
The dynamic range is ±16 mV to ±6.4 V.
The minimum requirement is a 486 Processor with 16 MB RAM.
Yes, it is compatible with Windows 95 and 98.
