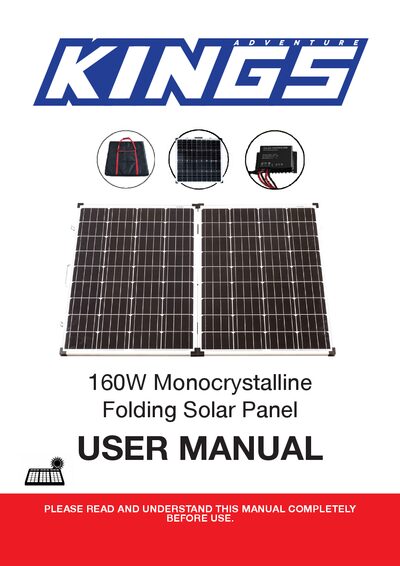

User manual for the Adventure Kings 160W Monocrystalline folding solar panel, covering setup, safety, specifications, and troubleshooting.
This manual provides safety warnings, setup instructions, and usage recommendations for the Adventure Kings 160W Monocrystalline folding solar panel and its PWM controller. It includes details on connecting the panel to a 12 V battery, adjusting the folding legs, and proper storage.
Technical specifications, parameter tables, LED indicator meanings, troubleshooting steps, and warranty information are also included to help users operate and maintain the panel safely and efficiently.
| Wattage | 160W (162W @ 14.03V) |
|---|---|
| Operating Voltage | 13.4 – 14.03 V |
| Open‑Circuit Voltage | 22.4 V |
| Peak Current Output | 8.75 A |
| Regulator Type | PWM (Pulse‑Width Modulator) |
| Dimensions | 775 × 670 × 65 mm |
| Extension Lead Length | 5 m |
| Ingress Protection Rating | IP68 |
| System Current | 10 A |
| Operating Temperature Range | -35 °C to +65 °C |
Only 12 V rechargeable batteries should be used; lead‑acid batteries must be placed in a well‑ventilated area.
A rapid flash of the solar panel LED indicates an over‑voltage condition.
The product comes with a full 12‑month warranty from the date of purchase.
