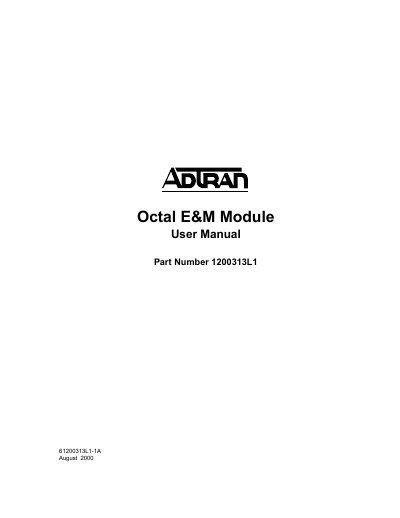

This user manual covers the installation, operation, configuration, and troubleshooting of the ADTRAN Octal E&M Module 1200313L1.
The ADTRAN Octal E&M Module 1200313L1 is a telecommunications device designed for use with the ATLAS 550 system. This manual provides comprehensive instructions on the module's physical description, functional features, and installation procedures, including wiring diagrams and shipping contents. It details the setup process from before installation to power-up and initialization, ensuring proper operation in a commercial environment.
| Product Type | Octal E&M Module |
|---|---|
| Part Number | 1200313L1 |
| Document Date | August 2000 |
| Warranty Period | five (5) years |
| Class | Class A digital device |
ADTRAN warrants the product for five (5) years from the date of shipment against defects in materials and workmanship.
It is a Class A digital device that generates and uses radio frequency energy.
The RMA number is issued by ADTRAN Technical Support or CAPS if a repair is needed, and must be identified on the package.
