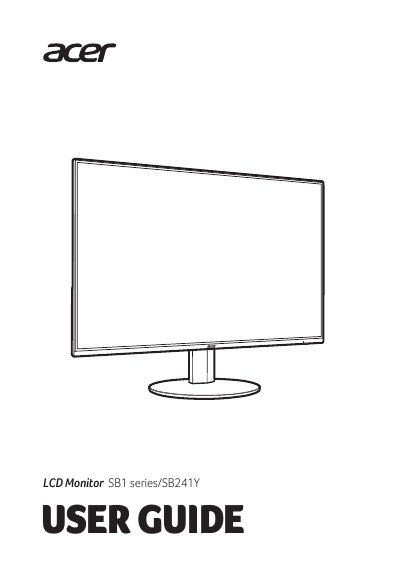

Quick start guide for the Acer SB241Y LCD monitor with safety instructions, setup steps, controls and specifications.
The guide provides essential safety instructions, unpacking steps, and how to attach the footstand to the Acer SB241Y monitor. It also details the connection process for VGA, HDMI and audio cables, and explains the functions of the external control buttons.
A specifications section lists the panel size, brightness, contrast, response time, power consumption and other technical data. Regulatory compliance information for FCC, CE and RoHS is included, along with disposal and environmental notes.
| Pixel pitch | 0.275 mm |
|---|---|
| Brightness | 250 cd/m² (Typical) |
| Contrast ratio | 100,000,000:1 Max. (ACM) |
| Viewable angle | 178° H / 178° V |
| Response time | 1 ms (VRB) |
| Panel type | In-Plane Switching |
| Maximum resolution | 1920×1080 @ 75 Hz |
| Power consumption (ON mode) | 20 W (typ.) |
| Standby power consumption | 0.5 W (typ.) |
| Dimensions (W×H×D) | 540.2 mm × 394.2 mm × 211.8 mm |
| Weight | 2.66 kg |
Turn off the monitor, unplug the power cord, spray a non‑solvent cleaning solution onto a rag and gently clean the screen.
