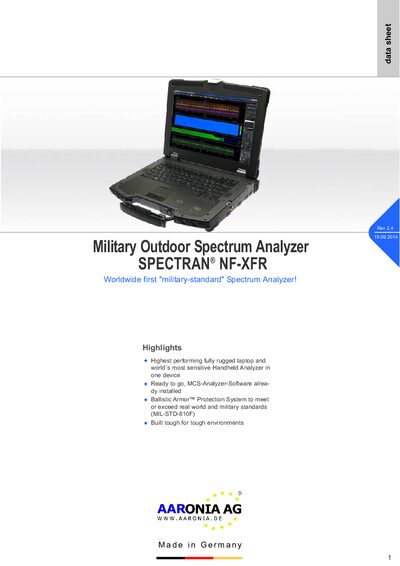

The Aaronia NF‑XFR is a rugged military‑grade outdoor spectrum analyzer with a 1 Hz‑30 MHz range and ballistic‑armor protection.
The SPECTRAN® NF‑XFR combines the performance of a fully rugged laptop with the sensitivity of a handheld analyzer. It features an Intel Core 2 Duo processor, 4 GB DDR2 memory, a 128 GB SSD, and a 6‑cell battery, all housed in a MIL‑STD‑810F‑tested chassis with IP‑65 sealing and Ballistic Armor™ protection.
Designed for demanding field work, the NF‑XFR supports Windows 7 with MCS‑Analyzer software, offers extensive optional accessories (antennas, probes, battery chargers, etc.), and is used for pre‑compliance, EMC/EMI, and exposure‑limit measurements in military, government, and industrial environments.
| Processor | Intel Core 2 Duo P8700 (2.53 GHz) |
|---|---|
| Memory | 4096 MB DDR2 (2 × 2048 MB) |
| Primary storage | 128 GB Solid State Drive |
| Battery | 6‑cell primary battery |
| Weight | 8.5 lb (3.9 kg) |
| Operating temperature (rated) | -20 °F to 145 °F (‑29 °C to 63 °C) |
| Ingress protection | IP‑65 (dust‑tight, water‑resistant) |
| Ruggedness standard | MIL‑STD‑810F |
It is independently tested to MIL‑STD‑810F and has an IP‑65 certified protection system.
The device ships with Windows 7 and the MCS‑Analyzer software pre‑installed.
