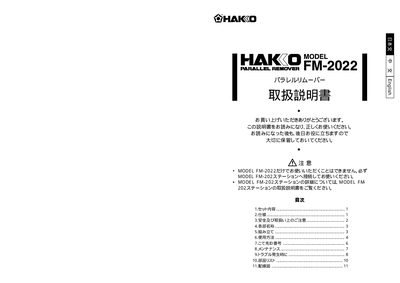

This document is an instruction manual for the ® Parallel Remover, including information on product setup, specifications, safety precautions, usage instructions, maintenance, and troubleshooting.
The FM-2022 Parallel Remover is a soldering accessory designed to be used only with the Hakko FM-202 Station. It supplies high‑temperature heat for soldering and desoldering tasks and includes a tip, heat‑resistant pad, cleaning sponge, and optional tip holder.
The manual covers the contents of the package, technical specifications, safety warnings, assembly steps, operating procedures, tip identification, routine maintenance, troubleshooting, a complete parts list, and a wiring diagram. It also provides guidance on proper grounding, temperature limits, and tip replacement. This manual is written in Japanese.
| Power consumption | 140 W (24 V) |
|---|---|
| Control temperature range | 200‑400 °C |
| Tip‑to‑earth resistance | ≤20 |
| Leakage voltage | ≤2 mV |
| Overall length (excluding cable) | 110 mm |
Do not touch the tip or surrounding metal parts, keep the device away from flammable materials, ensure the unit is grounded, and never set the temperature above 400 °C.
Grip the tip with a heat‑resistant pad, pull it out of the tool, then insert the new tip until the buzzer sounds once, confirming proper ID detection.
The tip temperature should not exceed 400 °C; for typical soldering work a temperature of 300 °C or lower is recommended.
