This datasheet provides information about the Xicon 2107 series AC adapters, including model number, power, input voltage, output voltage, output current, and plug type.

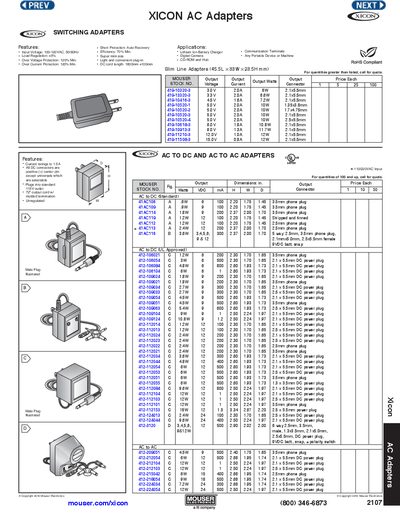

This leaflet provides a comprehensive list of Xicon AC adapters, covering both AC‑to‑DC and AC‑to‑AC types. Each entry includes input voltage, output voltage, power rating, connector style and price per unit. The adapters support input voltages of 100‑120VAC (50/60 Hz) and deliver regulated DC outputs ranging from 3 V to 12 V with currents up to 1.5 A.
Key features include over‑voltage, over‑current and short‑circuit protection, a minimum efficiency of 70 %, and compact dimensions with a 72‑inch output cord. Applications span lithium‑ion battery chargers, digital cameras, CD‑ROM hubs, communication terminals and other portable devices.
| Input Voltage | 100-120VAC, 50/60Hz |
|---|---|
| Output Voltage / Current / Power | 3.0V 2.0A 6W (example) |
| Current Rating | up to 1.5A |
| Efficiency | ≥70 % (minimum) |
| Connector Type | 3.5mm phone plug (among others) |
They accept an input voltage of 100‑120VAC at 50/60 Hz.
The adapters include over‑voltage, over‑current and short‑circuit protection with auto‑recovery.
The minimum efficiency is 70 %.
Various connectors are offered, such as 3.5 mm and 2.5 mm phone plugs and standard DC power plugs.
