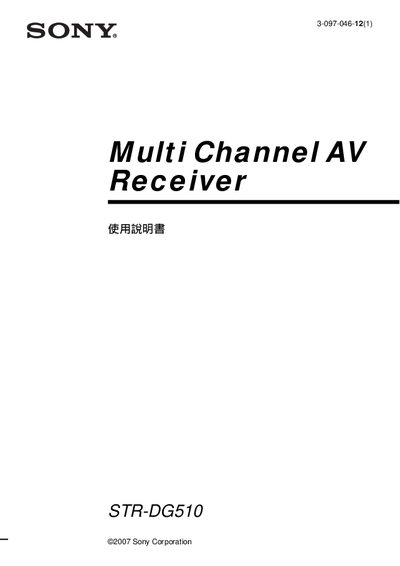

This document is the user manual for the Sony STR-DG510 2CT Multi Channel AV Receiver, released in 2007. It provides detailed instructions and precautions for using the product. The receiver features Dolby Digital and Pro Logic Surround, as well as DTS Digital Surround System.
This manual guides you through preparing the STR‑DG510, including positioning the unit, connecting speakers, audio and video components, and attaching the antenna. Detailed wiring diagrams and connector descriptions help ensure correct installation.
It also covers operating features such as auto‑calibration, tone and surround settings, FM/AM radio, sleep timer, and remote‑control functions, plus troubleshooting tips and specifications for supported formats like Dolby Digital, DTS and HDMI. This manual is written in Japanese.
| HDMI Interface | HDMI (High‑Definition Multimedia Interface) |
|---|
Select the AUTO CALIBRATION option as described in the manual to automatically adjust speaker levels and settings.
Connect the HDMI cable to the HDMI input on the receiver; the unit supports HDMI for high‑definition video and audio.
Activate the sleep timer function from the remote control to automatically power off the receiver after a set period.
