TA58LT00F is a small surface-mount load dropout regulator from Toshiba, with a maximum output current of 150 mA and an output voltage range of 2.5 V ∼ 13.4 V. It also features an ON/OFF function, allowing the regulator to be turned on or off via a control terminal.
The TA58LT00F is a compact, surface‑mount linear regulator with an ON/OFF control pin, delivering up to 150 mA of output current over a programmable voltage range of 2.5 V to 13.4 V. It includes protection features such as over‑current, over‑temperature, reverse‑polarity and 60 V load‑dump protection.

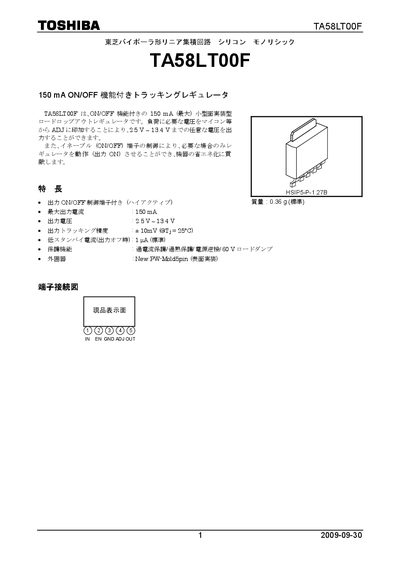

This datasheet details the device’s pinout, absolute maximum ratings, electrical characteristics, typical application circuits, package dimensions, ordering information, RoHS compliance, and usage notes for designers integrating the regulator into electronic systems. This manual is written in Japanese.
| Maximum output current | 150 mA |
|---|---|
| Tracking accuracy | ±10 mV |
| Standby (off) current | 1 nA |
| Protection functions | Over‑current, over‑temperature, reverse polarity, 60 V load dump |
| Package type | New PW‑Mold 5‑pin surface‑mount |
| Mass | 0.36 g (standard) |
The device can deliver up to 150 mA of output current.
Yes, the device is RoHS compatible as indicated in the compliance note.
