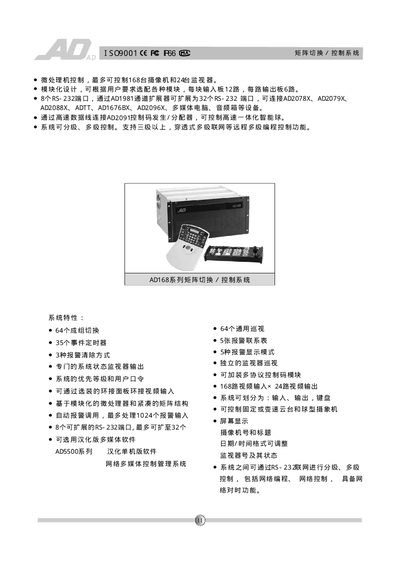

AD168 series matrix switching/control system is based on the modular microprocessor and the compact matrix structure, it can control up to 168 cameras and 24 monitors. System features: 64 group switching, 35 event timers, 3 alarm clearing methods, dedicated system status monitor output, system priority level and user password, can be used through the optional loop panel loop video input, automatic alarm call, up to 1024 alarm inputs, 8 expandable RS-232 ports, up to 32, can be selected Use the Chinese version of the multimedia software AD5500 series Chinese standalone software network multimedia management system control, 64 general patrol, 5 alarm contact tables, 5 alarm display modes, independent monitor patrol, can be added multi-protocol control code module.
The AD168 series is a modular matrix switch and control system capable of handling up to 168 cameras and 24 monitors. It features 64 group switches, 35 event timers, multiple alarm handling options, and expandable RS‑232 ports (8 standard, up to 32 with the AD1981 extender). The system supports multi‑level remote programming, video input/output routing, and integration with Windows 2000/XP graphical user interfaces.
The manual covers hardware components such as the AD168CP processor module, AD168R chassis, input/output video modules, power module, and optional control code and alarm modules. It also details system configuration, password protection, priority levels, patrol sequences, alarm display and clearing methods, RS‑232 communication settings, and technical specifications including bandwidth, power consumption, dimensions, and environmental limits. This manual is written in Chinese.
| Bandwidth | 20 MHz |
|---|---|
| Frequency response | +1 dB~6 MHz |
| Signal‑to‑noise ratio | -60 dB |
| Crosstalk (adjacent channel) | 55 dB |
| Crosstalk (input‑to‑input) | -70 dB |
| Switching rate | <20 ns |
| Power supply | 230 V, 50/60 Hz, max 180 W |
| Video input level | 0.5 ~ 2.0 Vp‑p (composite) |
| Video output level | 1.0 Vp‑p (composite) |
| RS‑232 ports | 8 (expandable to 32) |
| Dimensions (H×W×D) | 222 mm × 432 mm × 406 mm |
| Weight | 18.2 kg |
| Operating temperature | 0 °C ~ 50 °C |
| Operating humidity | 0 % ~ 95 % RH |
The system can control up to 168 cameras.
The base unit has 8 RS‑232 ports, which can be expanded to a maximum of 32 ports using the AD1981 channel extender.
The system can process up to 1024 alarm inputs.
Yes, the chassis is designed for 19‑inch rack mounting (5U height).
