This document is an operation manual that provides instructions for using and maintaining FY series products. It also includes safety guidelines and troubleshooting for common issues.

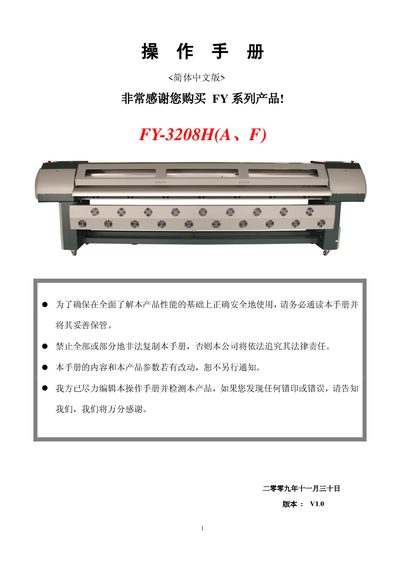

This manual covers important safety instructions, proper installation environment, and detailed setup procedures for the FY-3208H(A,F) printer. It includes guidance on power connections, grounding, and computer requirements.
The document also describes routine maintenance, troubleshooting tips, technical specifications, and the installation of four SPT510-35p1 print heads, ensuring reliable operation and optimal print quality. This manual is written in Chinese.
| Heating Power | 1900 W (9 A) |
|---|---|
| Printer Power | 660 W (3 A) |
| Power Supply | AC 220 V |
| Operating Temperature | 20‑30 °C |
| Operating Humidity | 40‑60 % |
| CPU Requirement | ≥ 2.0 GHz |
| Memory Requirement | ≥ 1 GB |
| Hard Disk Requirement | ≥ 80 GB |
| USB Interface | Standard USB 2.0 |
| Ground Resistance | < 30 Ω |
The printer requires an AC 220 V power source; if used on AC 110 V, a suitable step‑up transformer is needed.
Install the printer in a room with temperature between 20 °C and 30 °C, humidity between 40 % and 60 %, on a flat, stable surface away from strong electromagnetic sources.
Connect the printer to a properly grounded outlet; the ground‑plus‑neutral voltage must not exceed 0.3 V and the ground resistance must be less than 30 Ω.
