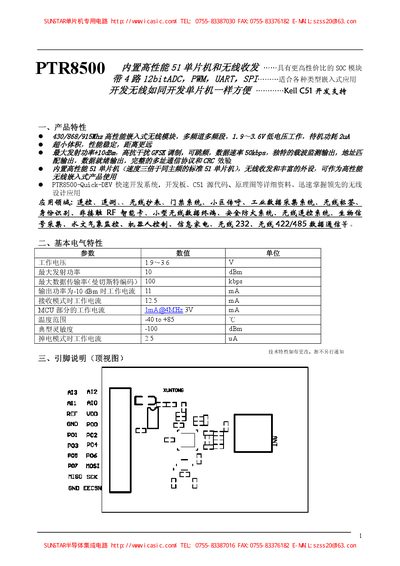

ptr8500 is a high-performance embedded wireless module produced by sunstar company. it has 4-way 12bit adc, pwm, uart, spi and other rich peripherals, which can be widely used in various types of embedded applications.
The PTR8500 wireless module integrates a high‑performance 51‑microcontroller with RF transceiver functions. It supports 4‑channel 12‑bit ADC, PWM, UART and SPI, making it suitable for a wide range of embedded applications such as remote control, data acquisition, and wireless sensor networks.
Key features include multi‑band operation (430/868/915 MHz), low‑voltage supply (1.9‑3.6 V), standby current as low as 2 µA, maximum transmit power of +10 dBm, and robust GFSK modulation with optional frequency hopping. The module also provides carrier‑monitor, address‑match and data‑ready outputs, and a built‑in CRC‑checked multi‑address protocol. This manual is written in Chinese.
| Operating voltage | 1.9 V – 3.6 V |
|---|---|
| Maximum transmit power | +10 dBm |
| Output power current (‑10 dBm) | 11 mA |
| Receive mode current | 12.5 mA |
| MCU current (4 MHz, 3 V) | 1 mA |
| Operating temperature range | -40 °C to +85 °C |
| Typical sensitivity | -100 dBm |
| Power‑down (standby) current | 2.5 µA |
The module operates from 1.9 V to 3.6 V.
The maximum transmit power is +10 dBm.
In power‑down (standby) mode the current consumption is 2.5 µA.
The module supports three frequency bands: 430 MHz, 868 MHz and 915 MHz.
