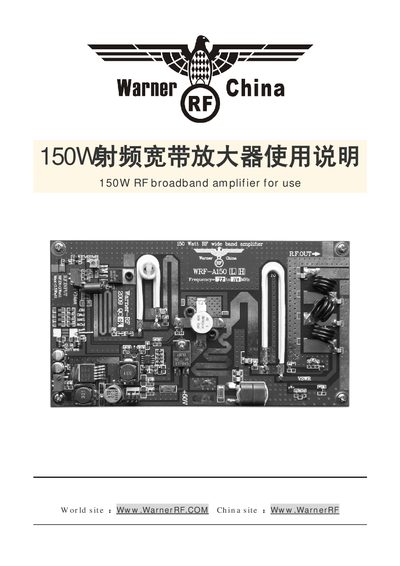

150W RF broadband amplifier user manual, introduces product safety warnings, functions, main board diagrams, troubleshooting and elimination, after-sales service and other content.
This manual introduces the Warner RF 150W broadband amplifier, covering safety warnings, basic operation, and key specifications such as power output, frequency range, and operating conditions. It also describes the main board layout and the functions of each connector.
The document includes detailed troubleshooting steps for common faults, warranty terms, and contact information for technical support. Users are advised to read the safety section before installation and to follow anti‑static precautions during setup. This manual is written in Chinese.
| Output power | 150 W (adjustable) |
|---|---|
| Input power | ≤ 1 W, max 1.5 W |
| Frequency range | 75 MHz–110 MHz (max 50–110 MHz) |
| Bandwidth | 35 MHz |
| Power supply voltage | 44 V–48 V |
| Working current | ≤ 6 A |
| Harmonic suppression | -65 dB |
| Flatness | < 1 dBm |
| Operating temperature | -20 °C–50 °C |
| PCB size | 180 mm × 100 mm × 15 mm |
Check the input signal and the main power supply, as lack of power output is usually caused by missing or incorrect input or power.
The fan turns on automatically when the temperature reaches 45 °C and turns off below that temperature, receiving up to 12 V 800 mA.
The product comes with six months of free warranty service, excluding damage caused by user disassembly.
