MP200 capture card is a high-quality image capture card based on MiniPCI bus, which supports four composite video inputs or three video inputs and one S-Video input, and can stably receive standard video signals from various video sources (PAL, NTSC, SECAM). Its maximum resolution can reach 768 x 576. It supports multiple cards in one machine and has low CPU occupancy. MP200 capture card has clear picture quality, high performance and price ratio, and good compatibility. It is an ideal choice for monitoring and image processing systems in various fields such as biomedical and military and public security.

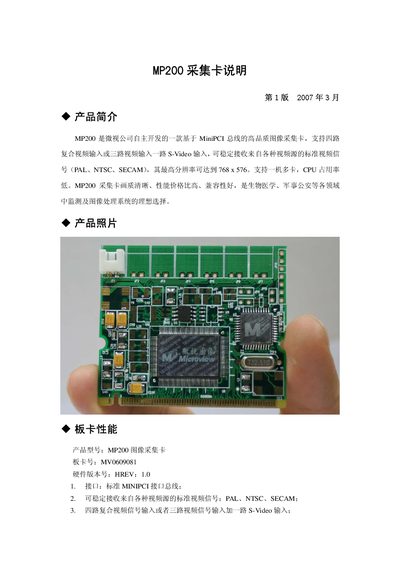

The MP200 is a MiniPCI‑bus image acquisition card developed by Wei Shi. It supports four composite video inputs or three video inputs plus one S‑Video input and can capture standard PAL, NTSC, and SECAM signals up to a maximum resolution of 768 × 576. The card is designed for clear image quality, low CPU usage, and compatibility with biomedical, military, and security imaging systems.
The manual outlines system requirements such as a MiniPCI‑compliant motherboard, a Pentium‑class CPU, at least 32 MB RAM, 2 MB video memory, and 20 MB free hard‑disk space. It also details the pin layout and watchdog connections, and provides guidance for installing drivers on Windows 9x, 2000, and XP environments. This manual is written in Chinese.
| Interface | Standard MiniPCI bus |
|---|---|
| Video Input | Four composite video inputs or three video inputs plus one S‑Video input |
| Supported Video Standards | PAL, NTSC, SECAM |
| Maximum Resolution | 768 × 576 |
| Capture Formats | 8‑bit, 15‑bit, 16‑bit, 24‑bit, 32‑bit |
The card provides driver libraries for Windows 9x, Windows 2000, and Windows XP environments.
Never plug or unplug the card while power is applied; disconnect power from both ends before handling any video source cables.
