Mitsubishi FR-S500 series inverter operation manual (basic chapter) introduces the product connection, installation, wiring, parameter setting, running control, display instrument adjustment, alarm protection function, specification and appearance size

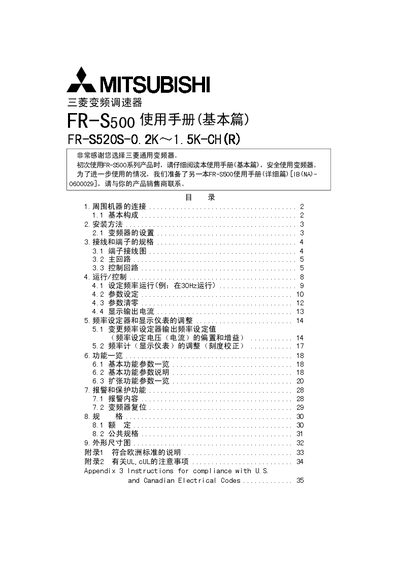

This user manual (basic edition) covers the FR‑S500 series inverter, model FR‑S520S‑0.2K‑CH. It begins with safety precautions, describing danger and caution levels, proper grounding, and handling to prevent electric shock, fire, or damage. Installation instructions detail proper mounting, environmental limits, and required clearances, while wiring sections illustrate terminal layouts for power, control, and communication connections.
Operational chapters explain frequency setting, parameter adjustment, function overviews, alarm and protection features, and provide the technical specifications and mechanical dimensions. Appendices address compliance with European, UL, and Canadian electrical codes. This manual is written in Chinese.
| Output frequency range | 0.5–120 Hz (start 0–60 Hz) |
|---|---|
| Output voltage | 3‑phase 200 V |
| Operating temperature range | -10 °C to +50 °C |
| Maximum short‑circuit current | ≤5 kA rms |
