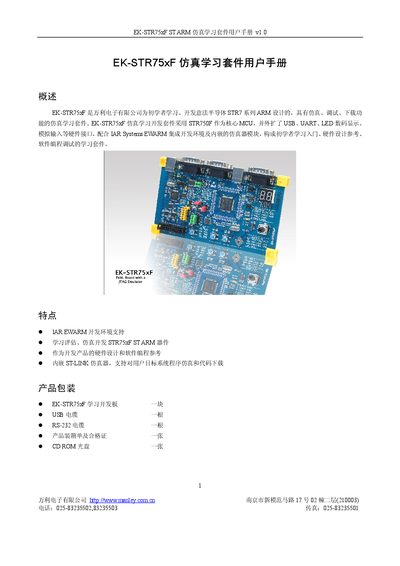

EK-STR75xF ST ARM Simulation Learning Kit User Manual introduces the function characteristics, product packaging, simulator and evaluation system function characteristics, as well as the function description of connectors and jumpers.
The EK-STR75xF ST ARM Simulation Learning Kit is a development board built around the STR750F MCU, providing USB, UART, LED display, analog inputs and a built‑in ST‑LINK emulator for beginners to learn ARM design, debugging and code download. The manual describes the board’s features, connector layout, jumper functions and required software.
It also includes driver and demo program installation instructions, schematic diagrams for the evaluation system and the emulator, and a list of after‑sales service centers across China. This manual is written in Chinese.
| Core MCU | STR750F |
|---|---|
| USB Interface | USB 1.1 full speed, USB powered |
| JTAG Voltage Range | 3.3 V – 5 V |
| JTAG Power Supply | ≤100 mA at 5 V |
| Clock Oscillators | 4 MHz and 32 kHz |
| LED Display | Two‑digit seven‑segment LED |
| USB Connector Type | B‑type USB socket |
| CAN Connector | DB9 CAN socket |
It uses the STR750F as the core MCU.
Power can be supplied either by the built‑in ST‑LINK emulator or via the USB port of the evaluation system.
