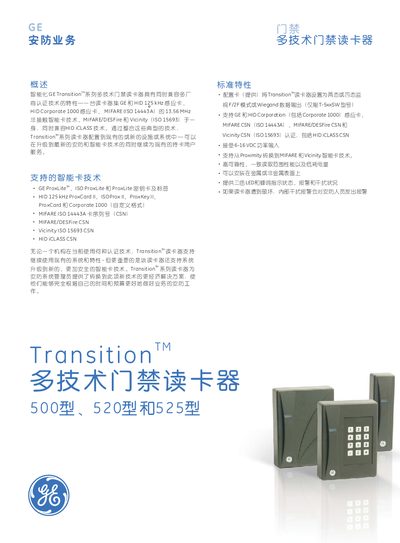

TransitionTM Multi-Technology Readers 500 Series, 520 Series and 525 Series are GE's multi-technology readers that support multiple authentication technologies, including GE and HID 125 kHz proximity cards, HID Corporate 1000 proximity cards, MIFARE (ISO 14443A) 13.56 MHz contactless smart card technology, MIFARE/DESFire and Vicinity (ISO 15693) as well as HID iCLASS technology.
The GE 500/520/525 series are multi‑technology access readers that support GE and HID 125 kHz proximity cards, MIFARE (ISO 14443A), MIFARE/DESFire, Vicinity (ISO 15693) and HID iCLASS cards. The manual explains how the readers can be installed in metal or non‑metal enclosures, provides wiring details for both GE F/2F and Wiegand systems, and lists environmental and performance specifications.
Key features include three‑color LED and audible alarms, internal interference detection, low power consumption (6‑16 VDC), and compatibility with a wide range of GE and third‑party access control systems. The document also contains part numbers for different mounting styles and color options. This manual is written in Chinese.
| Power Input | 6‑16 VDC |
|---|---|
| Operating Temperature | -13 °F to 149 °F (-25 °C to 65 °C) |
| Relative Humidity | 0 % to 95 % (non‑condensing) |
| Dimensions (T‑500SW) | 5.85 in × 1.75 in × 1.16 in (148.6 mm × 44.5 mm × 29.5 mm) |
| Dimensions (T‑520SW / T‑525SW) | 5.85 in × 4.5 in × 1.24 in (148.6 mm × 114.3 mm × 31.7 mm) |
| LED Indicator | Three‑color LED with audible alarm for status, alarm and interference |
| GE F/2F Wiring Minimum | 4 wires |
| Wiegand Wiring Minimum | 5 wires |
The reader accepts a power input of 6 to 16 VDC.
The device operates from –13 °F to 149 °F (–25 °C to 65 °C).
A minimum of four wires is required for the GE F/2F system.
