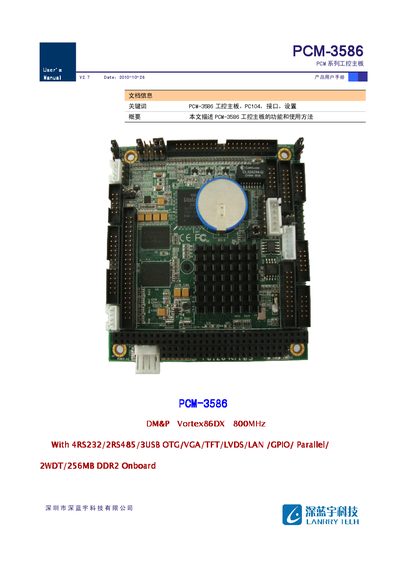

This document is the user manual for PCM-3586 industrial control board, which describes the functions and usage of the board, including interface settings and product specifications.
The PCM-3586 is a compact, low‑power x86 PC/104‑compatible motherboard featuring a DM&P Vortex86DX 800 MHz CPU, 256 MB DDR2 onboard memory, multiple serial and USB interfaces, and video output options such as VGA, LVDS and TFT LCD. It is designed for industrial control applications like data acquisition, process control, robotics and HMI.
This manual provides detailed information on the board’s hardware layout, connector pin‑outs, supported video modes, power requirements, operating temperature range, mechanical dimensions, and supported operating systems (DOS, Windows CE, Windows 98/2000/XP, Linux). This manual is written in Chinese.
| CPU | DM&P Vortex86DX 800 MHz |
|---|---|
| Onboard Memory | 256 MB DDR2 |
| USB Interfaces | 3 USB OTG, 2 USB 2.0 Full‑speed |
| Serial Ports | 4 RS232, 2 RS485 (share with RS232) |
| Video Output | VGA up to 1600×1200, LVDS, TFT LCD |
| Ethernet | 10/100 Mbit/s |
| Operating Temperature | -25 °C to 70 °C |
| BIOS | AMT BIOS |
It uses a DM&P Vortex86DX processor running at 800 MHz.
The board provides four RS232 ports.
VGA output up to 1600×1200, plus LVDS and TFT LCD interfaces are supported.
Supported OSes include DOS, WinCE 5.0, Windows 98/2000/XP, and Linux.
