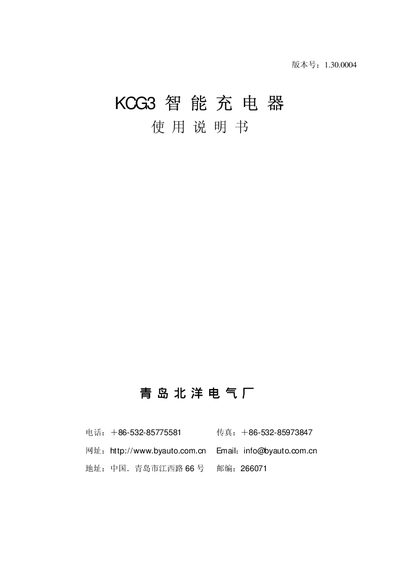

KCG3 intelligent charger is the upgraded product of KCG2 automatic charger, adopting Microchip’s 18F series single chip microcomputer, supporting various charging characteristic curves, intelligently controlling the charging process, meeting users’ requirements for different battery charging. The protection and control functions are perfect. LCD display, key setting charging parameters, user-friendly interface, easy to use.
The KCG3 series is an upgraded intelligent charger that uses a Microchip 18F microcontroller, LCD display and multiple communication interfaces (RS‑232, RS‑485, CAN). It supports various charging curves, automatic temperature compensation and optional power‑factor correction, making it suitable for marine, forklift, telecom and other battery‑powered applications.
The manual provides detailed specifications, safety and protection functions, panel layout, step‑by‑step operation instructions, parameter setting procedures and troubleshooting guidance.
| Maximum efficiency | ≥ 85 % |
|---|---|
| Output voltage (example for 24 V battery) | Float voltage 26.7 VDC, Equalize voltage 28.2 VDC |
