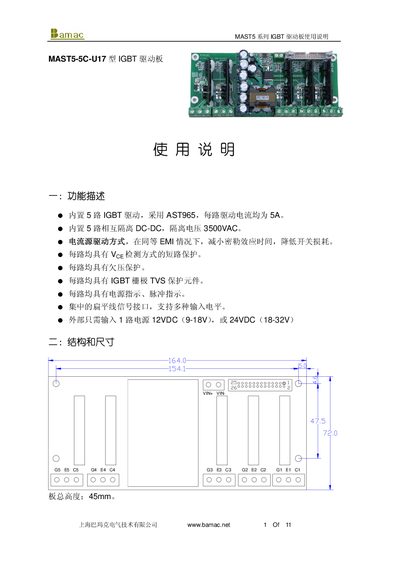

MAST5-5C-U17 is a 5-channel IGBT driver board with 5-channel IGBT drivers with a maximum drive current of 5A, 5 channels of mutually isolated DC-DC with an isolation voltage of 3500VAC, current-source drive mode, which reduces Miller effect time and switching loss under the same EMI conditions. Short-circuit protection with VCE detection method. Each channel has undervoltage protection. Each channel has IGBT gate TVS protection element. Each channel has power indicator and pulse indicator. Concentrated flat-line signal interface supports multiple input levels. Only 12VDC (9-18V) or 24VDC (18-32V) external power supply is required.
The MAST5-5C-U17 IGBT driver board provides five isolated driver channels, each delivering up to 5 A using the AST965 driver. It includes built‑in DC‑DC isolation (3500 V), short‑circuit, undervoltage and TVS protection, as well as power and pulse indicators. The board accepts a single 12 V or 24 V supply and offers flat‑cable signal interfaces.
The manual describes the pin definitions, signal input requirements (≥8 mA high‑level drive), protection signal outputs (PS1‑PS5), power input polarity, driver output circuitry, and detailed electrical parameters such as supply voltage ranges, operating frequency, power consumption, temperature limits, and protection timing adjustments. This manual is written in Chinese.
| Supply voltage (24 V version) | 18 V – 32 V |
|---|---|
| Supply voltage (12 V version) | 9 V – 18 V |
| Operating frequency | 0 – 100 kHz |
| Operating temperature range | -25 °C to +70 °C |
| Storage temperature range | -25 °C to +100 °C |
| Driver channel current | 5 A per channel |
| Undervoltage protection voltage | 18 V |
The board has five isolated IGBT driver channels, each capable of delivering 5 A.
