Tianjin Zhonghuan Automation Technical Control Equipment Co., Ltd. is a subsidiary of Tianjin Instrument Group Co., Ltd., specializing in the production of DCS systems. The company has developed the DCS-2001 distributed control system, which has excellent performance, high reliability, and a lower price compared to similar foreign products. As a strategic partner of Toshiba, the company has introduced the Toshiba V series integrated control system, which is widely used in various industries.
The V Series integration control system combines sequential control, loop control, and computer processing into a single DCS platform. It supports high‑speed data processing, a 100 Mbps industrial network, and up to 20 000 tag points, making it suitable for a wide range of industries such as oil, chemicals, power, and manufacturing.

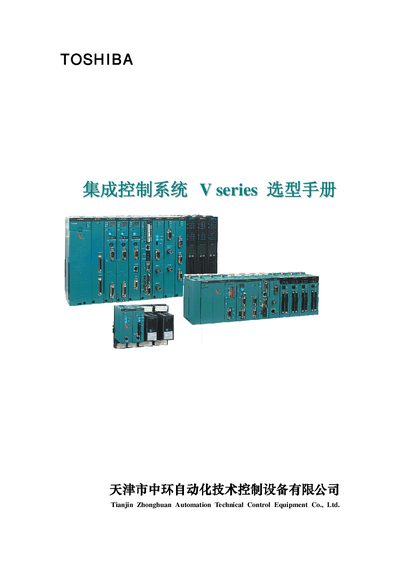

The manual details system structure, network options (Ethernet, TC‑net, Tosline, DeviceNet, Profibus), station configuration, module functions, and the three model families (1000, 2000, 3000). It also describes the system software, programming tools, and human‑machine interface features. This manual is written in Chinese.
| Data processing speed | 40 ns |
|---|---|
| Industrial network speed | 100 Mbps |
| Maximum tag points | 20 000 |
| Operator stations | 22 |
| Control stations | 32 |
| Program capacity (Model 3000 S module) | 112 ks |
| Processor (C module) | Pentium III 700 MHz |
The system can control up to 20 000 tag points.
It supports Ethernet, TC‑net, Tosline, DeviceNet, and Profibus.
The controller processes data in 40 ns.
The series includes Model 1000 (small), Model 2000 (medium), and Model 3000 (large).
