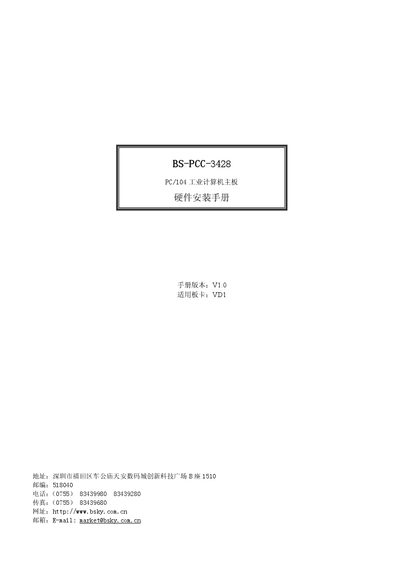

This manual describes the hardware installation steps for BS-PCC-3428 PC/104 industrial computer motherboard.
The PCC‑3428 is a compact 90 mm × 96 mm PC/104‑form‑factor industrial computer motherboard. It integrates an STPC Atlas CPU (enhanced 486 DX/DX2) with optional frequencies up to 133 MHz, up to 64 MBytes of SDRAM, a 2‑D graphics controller, Ethernet, DOC flash storage, USB, IDE, and a 16‑bit GPIO array. The board is designed for embedded applications such as medical devices, instrumentation, and network terminals.
This installation guide walks the user through connector identification, jumper settings, wiring of CRT/LCD displays, keyboard/mouse, serial ports, IDE devices, and power input. It also covers BIOS configuration, driver installation, and troubleshooting tips, with appendices that list system resources and provide GPIO programming examples. This manual is written in Chinese.
| CPU | STPC Atlas (enhanced 486 DX/DX2), up to 133 MHz |
|---|---|
| Memory | 32 M SDRAM on board, optional 64 M |
| Display Interfaces | CRT up to 1280×1024×75 bpp, LCD TFT up to 1024×768 18 bpp |
| Network | RealTek RTL8139C 10/100 Mbps Ethernet |
| USB Ports | 2 × USB 1.1 |
| IDE Interface | 44‑pin IDE supporting HDD and CD‑ROM |
| PC/104 Bus | Standard 90 mm × 96 mm |
| Power Supply | +5 V @ 0.91 A (max) at 133 MHz |
| Operating Temperature | -20 °C ~ +70 °C |
| Relative Humidity | 5 % ~ 95 % non‑condensing |
| GPIO | 16‑bit (two 8‑bit ports) |
| BIOS | Phoenix BIOS, plug‑and‑play |
It uses an STPC Atlas CPU, an enhanced 486 DX/DX2 core that can run at 66 MHz or be set to 90, 100, or 133 MHz.
The board provides two USB 1.1 ports.
CRT can display up to 1280 × 1024 × 75 bpp, while the LCD TFT supports up to 1024 × 768 with 18‑bit colour.
The motherboard is rated for industrial temperatures from –20 °C to +70 °C.
