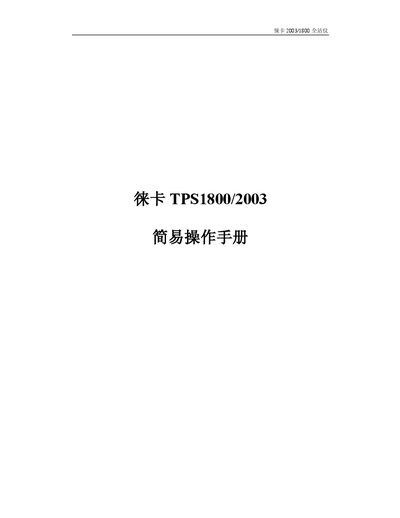

This document is a simple operation manual for Leica TPS1800/2003 total station, which mainly introduces the basic performance, maintenance and use of the instrument, as well as GSI data format, aF... function key, main menu, etc.
This manual describes the basic operation of the Leica TPS1800/2003 total station, including environmental requirements, data format, and the use of function keys. It explains how to perform common tasks such as measurement, calibration, and data management, and provides details on communication parameters for RS232 and GeoCOM interfaces.
The document also covers advanced features like EDM measuring programs, compensatory Hz‑corrections, lighting options, power‑off and sleep modes, and the use of user templates and accessories. Step‑by‑step procedures are given for tasks such as formatting memory cards, performing instrument calibration, and executing stakeout or free‑station measurements. This manual is written in Chinese.
| Angle measurement accuracy (TC(A)2003) | 0.3 seconds |
|---|---|
| Angle measurement accuracy (TC(A)1800) | 1.0 second |
| Distance measurement accuracy (2003 mode) | 1 mm + 1 ppm |
| Operating temperature range | -40 °C to +70 °C |
| Fast measuring program speed | 3 + 2 ppm, 1.5 s |
It can be used from –40 °C to +70 °C in a dry environment.
Select the EXTRA function (T1) and choose “Format memory card” to clear the card.
Choose the FAST program, which gives 3 + 2 ppm accuracy in 1.5 seconds.
