01PU pulse generator unit is mainly used for speed or position control of stepper or servo drive systems, with a maximum output of 200 KPPS pulses and a variety of motion control modes.

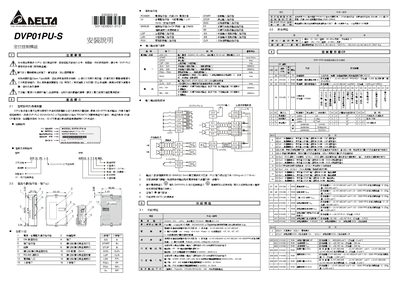

This manual provides step‑by‑step installation instructions for the Delta DVP01PU‑S positioning control module, including wiring diagrams, terminal assignments, and safety precautions. It also explains the module’s functional features such as speed settings, limit inputs, and communication interfaces.
Technical details such as power requirements, maximum speed, supported baud rates, and parameter configuration are listed, allowing technicians to correctly integrate the module into automation systems. This manual is written in Chinese.
| Power Input | 24V 2.5W |
|---|---|
| Output Module Voltage | +24V |
| Maximum Speed | 200 KPPS |
| Position Range | -2,147,483,648 ~ +2,147,483,647 |
The module requires a 24 V power input.
Supported baud rates are 4800, 9600, 19200, 38400, 57600 and 115200 bps.
The maximum speed is 200 KPPS.
