This document introduces the HP-241BG hot coding machine from Qingdao Ausense Packing Equipment Co., Ltd., including the product features, application range, and technical specifications.
The HP-241BG hot coding machine from Ausense employs a ribbon‑based printing method that produces clear, sanitary markings without ink residue. Its unique interchangeable character structure allows quick changes and easy operation on various soft packaging substrates such as paperboard, film, label and leather.

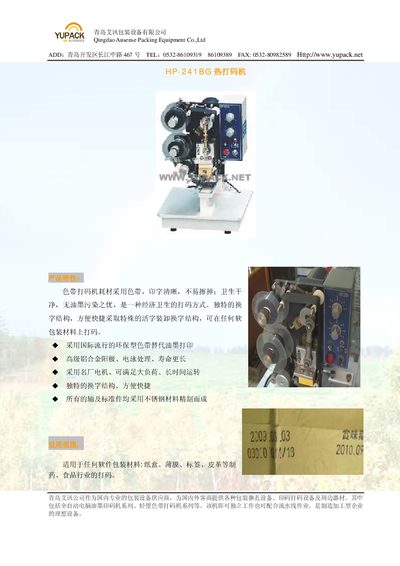

Technical specifications include a 220 V/50 Hz power supply, 120 W power consumption, printing speeds from 20 to 120 pieces per minute, a maximum print area of 11 × 35 mm, and a compact size of 350 × 350 × 410 mm. The machine is built with anodized aluminum alloy, electrophoretic treatment, stainless‑steel shafts, and a high‑quality motor for long‑term, high‑load operation. This manual is written in Chinese.
| Power Supply Voltage | 220V/50HZ |
|---|---|
| Power Consumption | 120W |
| Printing Speed | 20–120 pcs/min |
| Maximum Print Area | 11×35 mm |
| Ribbon Width | 35 mm |
| Dimensions (L×W×H) | 350×350×410 mm |
| Net Weight | 11 kg |
It uses an eco‑friendly ribbon instead of ink, providing clear and sanitary markings.
The machine can print between 20 and 120 pieces per minute.
