L-GAGE® LG series laser measurement sensors use advanced digital signal processing algorithms and secondary modulated visible lasers to provide an accuracy of up to 3µm, which can be used for distance, height and thickness measurement and detection applications. This sensor has a super-narrow effective beam that allows the detection window to be set at will within the detection range.
The LG series from Banner Engineering is a compact, self‑contained laser sensor designed for high‑precision, non‑contact measurement of moving, hot or sticky objects. It offers both analog (4‑20 mA or 0‑10 V) and switch outputs, with programmable detection windows set via front‑panel buttons.

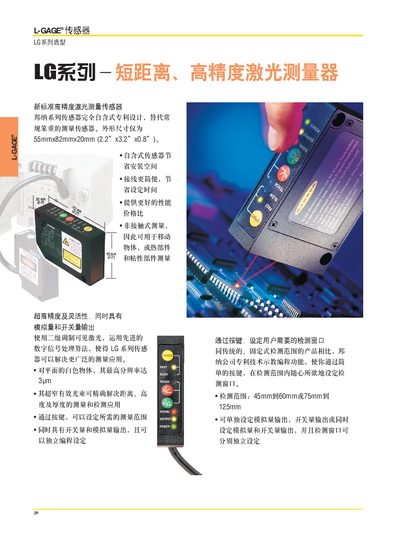

The manual covers technical specifications, wiring options (Euro‑type connectors or shielded cable), installation brackets, LED status indicators, environmental limits, and safety certifications such as IP67 and NEMA 6. This manual is written in Chinese.
| Detection range (LG5) | 45 mm to 60 mm |
|---|---|
| Laser wavelength | 670 nm visible red |
| Maximum resolution | 3 µm |
| IP rating | IP67, NEMA 6 |
The LG5 sensor measures distances from 45 mm to 60 mm.
Press the front‑panel button to program the desired detection window.
The sensor provides a switch output (SPST, NPN or PNP) and an analog output of either 4‑20 mA or 0‑10 V.
