HELOXY Modifier 62 is a low volatile monofunctional epoxy resin diluent. It has good mechanical properties and chemical resistance. It can be used to reduce the viscosity of general epoxy resins and high molecular weight aromatic epoxy resins, and is compatible with almost all types of thermosetting epoxy resins.
HELOXY™ Modifier 62 is a low‑viscosity aromatic mono‑functional epoxy resin diluent that provides low volatility, good mechanical performance and chemical resistance. It improves wetting of substrates and fillers in epoxy systems and is compatible with most thermosetting epoxy resins.

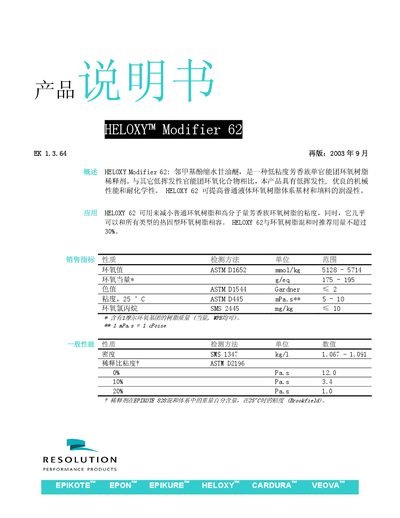

The document lists test methods, typical physical properties, recommended usage (up to 30% by weight), storage conditions (sealed at room temperature, dry environment, minimum one‑year shelf life) and safety precautions, referencing the product’s safety data sheet and factory guides. This manual is written in Chinese.
| Epoxy value (ASTM D1652) | 5128 - 5714 mmol/kg |
|---|---|
| Epoxy equivalent | 175 - 195 g/eq |
| Color value (ASTM D1544) | ≤ 2 Gardner |
| Viscosity (25 °C, ASTM D445) | 5 - 10 mPa·s |
| Density | 1.067 - 1.091 kg/l |
| Viscosity at 0 % dilution | 12.0 Pa·s |
| Viscosity at 10 % dilution | 3.4 Pa·s |
| Viscosity at 20 % dilution | 1.0 Pa·s |
The recommended usage level should not exceed 30% by weight of the resin system.
It should be kept sealed in a dry environment at room temperature, where it remains stable for at least one year.
