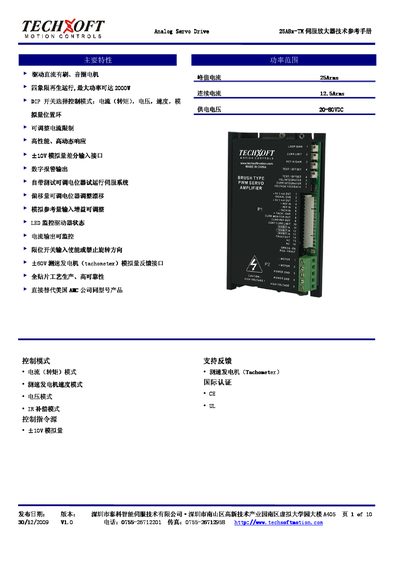

The 25A8x‑TM analog servo drive from Techsoft Motion provides up to 2000 W of power with a 20‑80 V DC input range and a maximum output current of 12.5 A. It supports multiple control modes, including four‑quadrant regeneration, speed (tachometer) feedback, and PWM operation, and includes safety features such as over‑current, over‑temperature, and short‑circuit protection.
The manual details electrical connections, pin functions, mechanical dimensions (129.3 × 75.8 × 25.1 mm, 280 g), and configuration options such as gain settings, current limits, and offset adjustments. It also provides guidance on installation, cooling requirements, and troubleshooting. This manual is written in Chinese.
| Maximum Power Output | 2000 W |
|---|---|
| Input Voltage Range | 20‑80 V DC |
| Maximum Output Current | 12.5 A |
| Maximum Peak Current | 25 A |
| Maximum Power Consumption | 50 W |
| Load Inductance | 200 µH |
| Resonant Frequency | 22 kHz |
| Control Voltage | 10 V |
| Tachometer Voltage | 60 V DC |
| Dimensions (W × H × D) | 129.3 × 75.8 × 25.1 mm |
| Weight | 280 g |
The drive accepts a DC input voltage between 20 V and 80 V.
It can deliver up to 2000 W of continuous power.
The unit provides over‑current, over‑temperature, short‑circuit (phase‑to‑phase and phase‑to‑ground) protection.
