TPI-714 Flue Gas Analyzer is a high-end and easy-to-use analyzer that can display and calculate fuel readings as well as most measurements related to combustion. This instrument has been designed with high precision and is backed by a 3-year limited warranty (excluding sensors). The O2 sensor has a 2-year warranty and the CO sensor has a 3-year warranty.

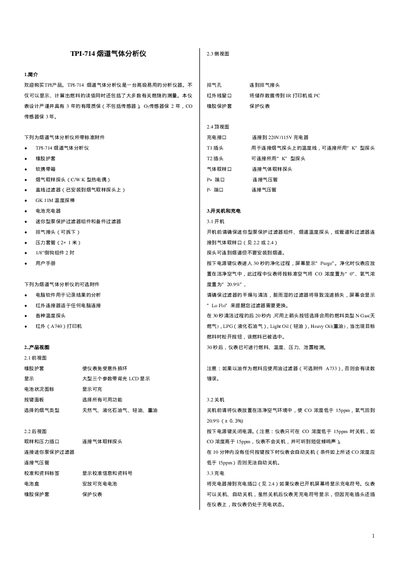

This manual introduces the TPI‑714 smoke duct gas analyzer, lists the standard and optional accessories, and describes the instrument’s front, rear, side and top views. It explains how to power the device on and off, charge the battery, and connect the sampling probe and pressure ports.
Four main functions are covered: gas analysis, temperature reading, pressure testing, and date/time setting. The guide also details data storage, printing, timed recording, and downloading data to a computer, followed by specifications, calibration schedule, consumable parts, and accessory part numbers. This manual is written in Chinese.
| Operating temperature | -105 °C ~ 50 °C |
|---|---|
| Battery type | Rechargeable Ni‑MH |
| Battery life | >6 hours |
| Charger input voltage | 115‑230 V AC, 50/60 Hz |
| Supported fuels | Natural gas, LPG, light oil, heavy oil |
| Pressure units | mbar, kPa, inH₂O |
| Display | Backlit LCD |
| Data storage capacity | 10 data sets |
| Data record capacity | 400 records (100 per page, 4 pages) |
| Real‑time clock | 24‑hour clock with date |
| Dimensions | 200 mm × 90 mm × 60 mm |
| Weight | 500 g |
| Protection | Rubber standard protective sleeve |
| Certification | BS7927 (draft BS7967) |
| Pressure range | -150 mbar ~ +150 mbar |
| Pressure resolution | 0.0 mbar |
| Pressure accuracy | ±0.596 %FS |
Press the power key; the instrument performs a 30‑second purge, shows “Purge” on the screen, and then becomes ready for measurement.
No. The device will only shut down automatically when CO concentration is below 15 ppm; if CO is higher, it will not power off and will emit a short beep.
