The LTC1740 is a 6Msps, 14-bit sampling A/D converter that draws only 245mW from either a single 5V or dual ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold and a programmable precision reference. The LTC1740 has a flexible input circuit that allows differ- ential full-scale input ranges of ±2.5V and ±1.25V with the internal reference, or any full-scale input range up to ±2.5V with an external reference. The input common mode voltage is arbitrary, though a 2.5V reference is provided for single supply applications. DC specifications include 1LSB typical INL, 0.5LSB typical DNL and no missing codes over temperature. Outstanding AC performance includes 79dB S/(N + D) and 91dB SFDR at an input frequency of 2.5MHz. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 80MHz bandwidth. The 75dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. A separate output logic supply allows direct connection to 3V components.
The LTC1740 is a 14‑bit, 6 Msps sampling analog‑to‑digital converter from Linear Technology. It operates from a single 5 V supply or dual ±5 V supplies and offers true differential inputs with 75 dB CMRR, a full‑power bandwidth of 80 MHz, and programmable reference options.

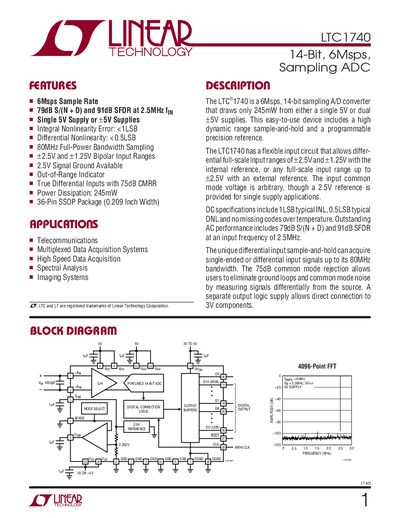

The datasheet provides detailed electrical specifications, pin functions, timing characteristics, typical performance graphs, and recommended PCB layout for the 36‑lead SSOP package. Related parts and ordering information are also included.
| Maximum Sample Rate | 6 Msps |
|---|---|
| Power Dissipation | 245 mW (typical) |
| Full‑Power Bandwidth | 80 MHz |
| Input Range | +2.5 V and +1.25 V bipolar |
| Common‑Mode Rejection Ratio (CMRR) | 75 dB |
| Package | 36‑lead SSOP (0.209 in width) |
It can be powered from a single 5 V supply or from dual ±5 V supplies.
The device supports up to 6 Msps sampling.
Typical power dissipation is 245 mW, with a maximum of about 300 mW.
The LTC1740 provides a CMRR of 75 dB.
