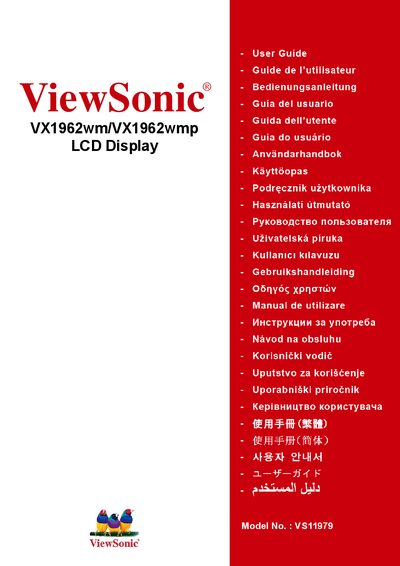

This document is about ViewSonic VX1962wm/VX1962wmp LCD display. The document includes information about electromagnetic compatibility, important safety instructions, requirements for China's electronic information product pollution control label, copyright information, and product registration. It also covers guidelines for setting up, packaging contents, wall mounting (optional), adjusting screen images, and other operations of the LCD display. The document also provides technical specifications, troubleshooting, customer support, cleaning the LCD display, and other information.
This manual covers everything you need to install and use the ViewSonic VX1962wm/VX1962wmp 19‑inch LCD display, including safety warnings, quick start steps, wall‑mount instructions, and menu configuration. It also contains technical specifications, troubleshooting tips, and warranty details.
The guide explains how to connect power and video cables, set the optimal resolution (1680 × 1050 @ 60 Hz), lock menu and power buttons, clean the screen safely, and register the product for support.
| Display size | 19‑inch |
|---|---|
| Panel type | TFT WSXGA+ active‑matrix LCD |
| Maximum resolution | 1680 × 1050 @ 60 Hz |
| Supported input signals | RGB analog (0.7/1.0 Vp‑p, 75 Ω) / TMDS digital (100 Ω) |
| Power voltage | 100‑240 VAC, 50‑60 Hz (auto‑switching) |
| Dimensions (W × H × D) | 447.04 mm × 398.98 mm × 174.95 mm |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
Set the display to 1680 × 1050 @ 60 Hz, which is the preset VESA mode for this monitor.
