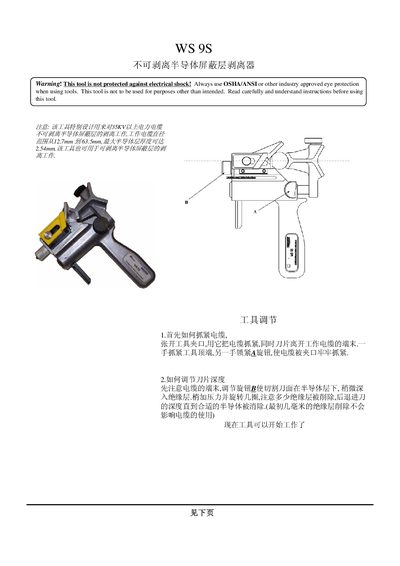

WS 9S Insulated Semiconductor Shielding Layer Stripper, designed for 35KV above power cable, non-dismantled semiconductor shielding layer stripping.
The WS 9S is a specialized stripping tool designed for high‑voltage (35 kV+) power cables with non‑peelable semiconductor shielding. It includes safety warnings such as the need for OSHA/ANSI approved eye protection and cautions against electrical shock.
The manual explains how to clamp the cable, adjust the blade depth with knob B, and rotate the tool to remove the semiconductor layer while preventing it from winding around the cable. It also covers blade replacement (CB 40X, P/N 21715) and provides warranty information. This manual is written in Chinese.
| Cable diameter range | 12.7 mm – 63.5 mm |
|---|---|
| Maximum semiconductor layer thickness | 2.54 mm |
| Minimum operating voltage | 35 kV |
| Replaceable blade model | CB 40X (P/N 21715) |
You must wear OSHA/ANSI or other industry‑approved eye protection and be aware that the tool is not protected against electrical shock.
The tool works with cables whose diameter ranges from 12.7 mm to 63.5 mm.
Turn knob B so the cutting edge sits just below the semiconductor layer, allowing a slight cut into the insulation before rotating the tool.
