EPEC 2024 is a compact and multifunctional embedded control module designed for mobile device control systems. It features a programmable controller, 2xCAN, 24 PWM output signals, 4 FB pins, and a rich I/O interface.
The EPEC 2024 is a compact, multi‑function embedded controller designed for mobile equipment. It offers open I/O interfaces, two CAN buses (CANopen and SAE J1939), and a high protection rating of IP67 for harsh environments.

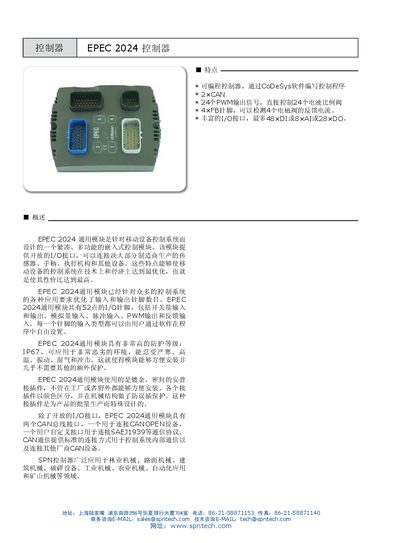

The manual details technical parameters such as processor type, memory size, power consumption, and wiring diagrams, and includes installation guidance with mounting dimensions and connector information. This manual is written in Chinese.
| Processor | C167 |
|---|---|
| Memory | 128 / 256 KB |
| I/O pins | 52 |
| Power consumption (no load) | ≈1.8 W @ 24 VDC |
| Supply voltage | 24 VDC (10–30 VDC range) |
| Operating temperature | -40 °C ~ 70 °C |
| Protection rating | IP67 |
| Maximum continuous current | 13 A (full load) |
It is rated IP67, suitable for very harsh environments.
The controller provides a total of 52 I/O pins.
The controller operates from –40 °C to +70 °C.
