The LW5D-16 series universal conversion switch is suitable for converting electrical control circuits (such as electromagnetic coils, electrical measuring instruments, and servo motors) in AC circuits with a frequency of 50Hz and a voltage of up to 500V, and in DC circuits with a voltage of up to 440V. It can also directly control a 5.5KW three-phase squirrel-cage induction motor (start, reversible conversion, and variable speed).
The LW5D-16 universal transform switch is designed for use in AC circuits up to 50 kV at 50 Hz and DC circuits up to 440 V, as well as direct control of 95 kW three‑phase induction motors. It supports various operation modes such as start, reversible change, and speed variation.

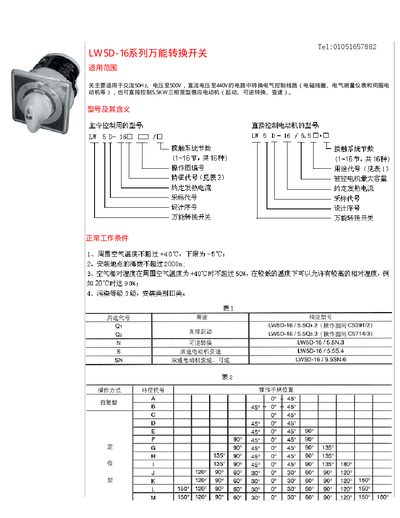

The document lists normal operating conditions, technical parameters, physical dimensions, and ordering procedures, including model codes, section counts (1‑16), and rated voltage and heating current values. This manual is written in Chinese.
| Rated Voltage | 500 V |
|---|---|
| Electrical Life Cycles | 0‑104 |
The ambient temperature must be between –5 °C and +40 °C.
The switch can be configured with 1 to 16 sections.
The rated voltage is 500 V.
