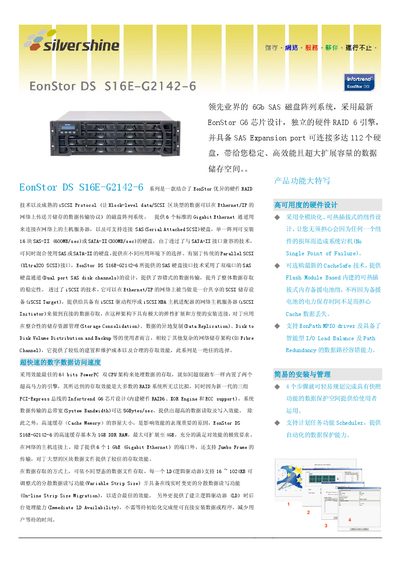

EonStor DS S16E-G2142-6 is a leading 6Gb SAS disk array system, with the latest EonStor G6 chip design, independent hardware RAID 6 engine, and SAS Expansion port can connect up to 112 hard disks, giving you stable, high performance and super large expansion capacity of data storage space.
The DS S16E‑G2142‑6 is a 6 Gb SAS RAID storage array that uses the EonStor G6 chipset with a dual‑port PowerPC architecture. It supports up to 16 SAS‑II or SATA‑II drives per enclosure and can be expanded to 112 drives (224 TB) via SAS JBOD modules. The system provides six Gigabit Ethernet ports, iSCSI target capability, and a range of data‑protection features such as RAID 6, snapshots, and remote replication.
Management can be performed locally via an LCD panel, through a serial console, or remotely using the Java‑based SANWatch web interface. The hardware is fully hot‑swap, includes redundant power supplies and fans, and offers optional CacheSafe flash‑based battery backup for the cache memory. This manual is written in Chinese.
| Interface | SAS‑II |
|---|---|
| Supported HDD capacities (SAS‑II) | 300 GB, 400 GB, 600 GB |
| Rotational speed (SAS‑II) | 15000 rpm |
| Cache memory | 1 GB DDR (expandable to 4 GB) |
| Maximum host connections | 6 × 1 Gbps Ethernet ports |
| Drives per array | 16 drives (up to 32 TB) per enclosure |
| Maximum total drives (with JBOD) | 112 drives (224 TB) |
| Power supplies | 2 × 530 W redundant (with PFC) |
| Weight (empty) | 18.56 kg |
Supported RAID levels are 0, 1, 0+1, 3, 5, 6, 10, 30, 50, and 60.
The array provides six 1 Gbps Ethernet ports for host connections.
