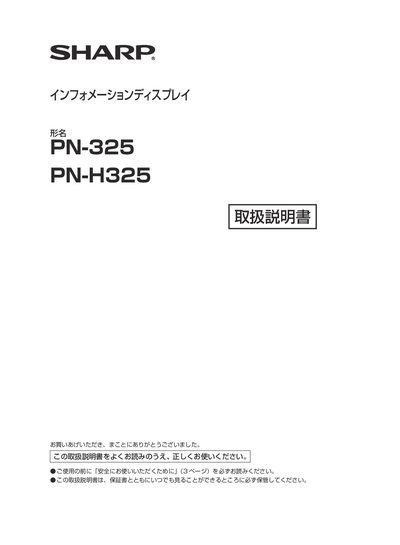

Sharp PN-325 PN-H325 Information Display User Manual

This document is an instruction manual that provides information on how to use and important precautions for the PN-325 and PN-H325 models.

Brand: Sharp
Category: Other
Document type: User Manual
Language: Japanese
Pages: 20
File format: PDF
File size: 1.8 MB
Published: 02 October, 2011
Updated: 29 September, 2023
MD5 checksum: 84DAA11FF1091AA10DEE2BF84DFDCFB4
PDF: Sharp PN-325 PN-H325 Information Display User Manual PDF

About this manual

The manual begins with safety precautions, warning symbols, and proper handling of the power cord, plug, and LCD panel. It explains the risks of improper use, such as fire, electric shock, and damage to the display, and outlines steps to avoid these hazards.

Subsequent sections cover the installation procedure, required accessories, and detailed connection methods for computers, AV equipment, external speakers, and other terminals. It also includes operating temperature limits, power requirements, and troubleshooting tips for common issues like screen flicker or dimness. This manual is written in Japanese.

What's inside

Safety Precautions
Included Accessories
Component Identification
Installation Procedure
Computer Connection
AV Equipment Connection
External Speaker Connection
Power and Temperature Requirements
Troubleshooting and Service

Specifications

Power supply	AC100V (50/60Hz)
Operating temperature range	0 °C – 40 °C
Harmonic current standard	JIS C 61000‑9.8
EMI class	VCCI Class A information‑technology device

Frequently asked questions

What voltage should be used for the display?

Use an AC100 V (50/60 Hz) mains outlet.

What is the recommended operating temperature range?

The display should be used in an environment between 0 °C and 40 °C.

Download PDF (1.8 MB)
