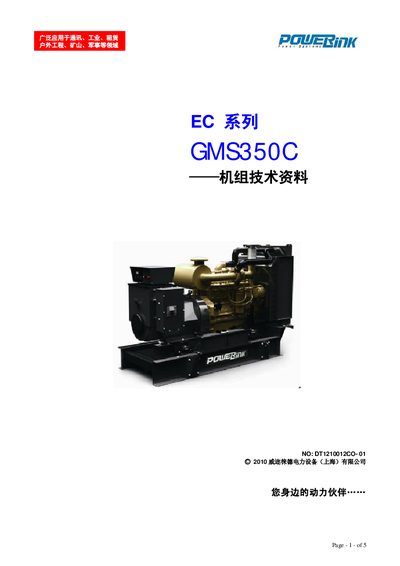

This document provides technical information on the EC series GMS350C unit produced by PowerLink Power Equipment (Shanghai) Co., Ltd. The unit is widely used in the fields of communication, industry, leasing, outdoor engineering, mining, and military. The unit features a compact structure, excellent craftsmanship, and stable power performance. It is equipped with grounding protection, emergency shutdown button, quick connector, and has an 8-hour fuel tank. The unit also has excellent shock absorption measures to reduce vibration, small size, convenient transportation, and attractive appearance. It offers easy connection, simple operation, and can be customized according to customer requirements. The unit ensures stability, extends service life, and is easy to use and maintain.
The Powerlink GMS350C is a compact, transport‑friendly generator set designed for industrial, rental, outdoor engineering, mining and seasonal applications. It features a Cummins NTA855G2A engine paired with a Stanford HCI444E alternator, delivering a rated output of 350 kVA at 1500 rpm.
The unit includes advanced control options such as PLC‑702 (CSE 702) and PLC‑5220 (CSE 5220) modules, optional remote control screens, and a range of accessories. Dimensions are 2995 mm × 1280 mm × 1845 mm and the weight is 5502 kg. This manual is written in Chinese.
| Engine model | NTA855G2A |
|---|---|
| Alternator model | HCI444E |
| Rated output power | 350 kVA |
| Rated speed | 1500 rpm |
| Control module PLC‑702 | CSE 702 |
| Control module PLC‑5220 | CSE 5220 |
The GMS350C is rated at 350 kVA.
It uses a Cummins NTA855G2A engine.
Two options are offered: PLC‑702 with a CSE 702 module and PLC‑5220 with a CSE 5220 module.
