SBC-2410X is an embedded computer platform based on ARM9. It is based on Samsung's ARM processor S3C2410X and uses a 6-layer board design. S3C2410X uses the ARM920T core and has a full-performance MMU (memory processing unit). It is suitable for designing mobile handheld device products, with high performance, low power consumption, rich interfaces and small size.
The SBC-2410X is a single‑board computer designed by Guangzhou Friendly Arm. It uses a Samsung S3C2410X ARM920T processor on a 6‑layer PCB, measures 120 mm × 90 mm, and includes a 20‑pin JTAG connector, USB, audio I/O, and a 1220‑type backup battery. The board is intended for handheld and PDA‑type applications.

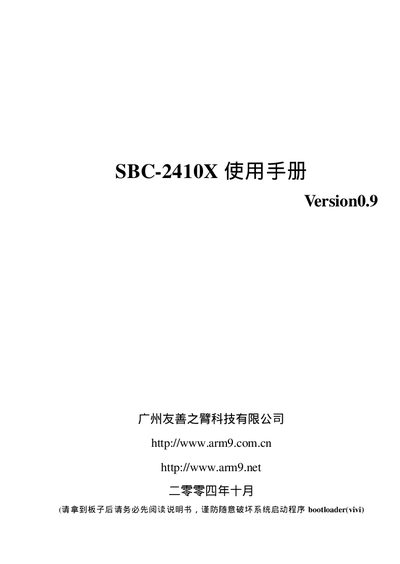

The document covers hardware description, quick installation, interface details, Linux command utilities, network services, and embedded development guides. It also explains how to use the pre‑installed armrLinux system and Windows CE 4.2, and provides programming examples for graphics and drivers. This manual is written in Chinese.
| Dimensions | 120mm x 90mm |
|---|---|
| PCB Layers | 6‑layer board |
| JTAG Connector | 20‑pin standard JTAG |
| Backup Battery | 1220‑type onboard backup battery |
| USB Interface | USB port present |
| Audio Interface | Audio input and output |
The board provides a standard 20‑pin JTAG connector.
The board measures 120 mm by 90 mm.
