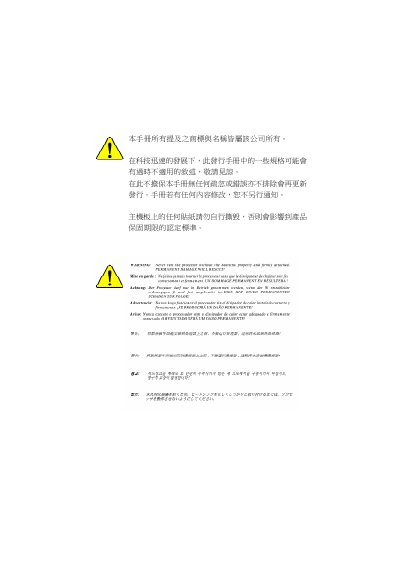

This guide provides detailed instructions for installing the GA-8ILML4 P4 Titans DDR motherboard. It includes safety notices, a declaration of conformity, and a step‑by‑step walkthrough of mounting the board, connecting the CPU, RAM, and peripheral cables.
Later sections describe BIOS and EasyTune settings, technical reference data such as chipset and memory specifications, and an appendix with part numbers and support information. This manual is written in Chinese.
| Form factor | Micro ATX 21.0 cm × 24.3 cm |
|---|---|
| Chipset | Intel 82845GL with ICH4 controller hub |
| PCI slots | 3 × 33 MHz PCI 2.2 compliant slots |
| USB ports | 6 × USB connectors |
| Audio codec | Sigmatel 9721 CODEC |
It follows a Micro ATX layout measuring 21.0 cm by 24.3 cm.
The board includes six USB connectors.
Up to 2 GB of DDR memory can be installed using two 184‑pin DIMM slots.
