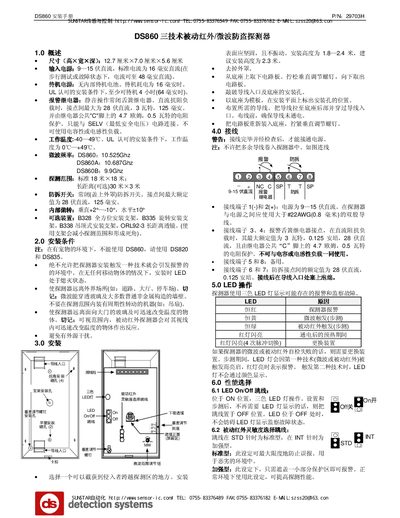

The DS860 is a three‑technology passive infrared/microwave anti‑theft detector. It measures 12.7 cm × 7.0 cm × 5.6 cm, runs on 9‑15 V DC, and operates from –40 °C to +49 °C. The device uses a silent NC relay with a 28 V DC, 3 W, 125 mA rating and includes optional lenses for extended range.
The guide details mechanical installation, wiring, LED status indications, performance selection, and step‑by‑step testing procedures. It also provides maintenance recommendations and shielding options to adjust the passive infrared detection area. This manual is written in Chinese.
| Dimensions (H×W×D) | 12.7 cm × 7.0 cm × 5.6 cm |
|---|---|
| Input Power | 9‑15 V DC |
| Standby Power Consumption | 16 mA·h |
| Alarm Relay Rating | 28 V DC, 3 W, 125 mA |
| Operating Temperature | -40 °C to +49 °C |
| Microwave Frequency (DS860) | 10.525 GHz |
| Standard Detection Range | 18 m × 18 m |
| Shielding Effect | Reduces PIR range only, microwave range unchanged |
The detector operates on a 9‑15 V DC power supply.
After power‑on, wait at least 2 minutes before starting any step‑testing.
The device works from –40 °C up to +49 °C.
No, it should not be used where pets are present; use DS820 or DS835 instead.
