The CFM137, manufactured by CFM S.p.A., is a single-phase power industrial vacuum cleaner equipped with 3 independent self-cooling motors with a power of 1kw each. This product has a compact structure, small size, and light weight, designed ergonomically for convenient use. It is successful in various industrial fields such as metal processing, ceramics, and food. It features a low exhaust speed that does not interfere with operators. It is available in two models with trash bin capacities of 60 liters and 100 liters.
The CFM 137 is a compact, lightweight single‑phase industrial vacuum cleaner designed for a range of applications such as metalworking, ceramics, and food processing. It features three independent self‑cooled 1 kW motors and a top‑mounted exhaust that directs airflow downward, minimizing interference for the operator.

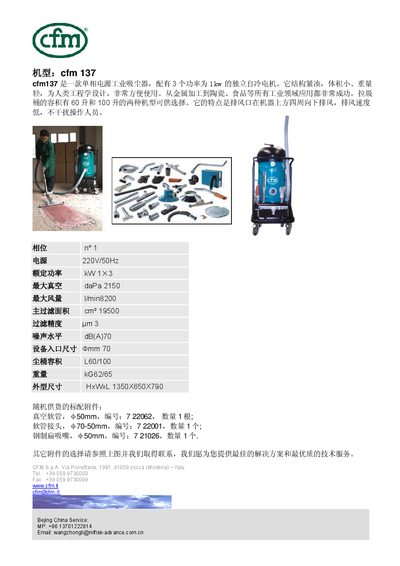

Technical specifications include a 220 V/50 Hz power supply, a maximum vacuum of 2150 daPa, and a maximum airflow of 8200 V·min. Standard accessories supplied are a 50 mm vacuum hose, a 70‑50 mm hose connector, and a steel flat nozzle. Contact information for CFM S.p.A. in Italy and a service center in Beijing are also provided. This manual is written in Chinese.
| Power supply | 220 V / 50 Hz |
|---|---|
| Rated power | 1 kW × 3 |
| Maximum vacuum | 2150 daPa |
| Maximum airflow | 8200 V·min |
| Main filter area | 19500 cm² |
| Filter precision | 3 µm |
| Noise level | 70 dB(A) |
| Inlet size | 70 mm |
| Bucket capacity | 60 L / 100 L |
| Weight | 62 kg / 65 kg |
| Dimensions (HxWxL) | 1350 mm × 650 mm × 790 mm |
It operates on a 220 V, 50 Hz power supply.
The vacuum cleaner has three independent self‑cooled motors, each rated at 1 kW.
Two bucket sizes are offered: 60 L and 100 L.
Standard accessories are a 50 mm vacuum hose, a 70‑50 mm hose connector, and a steel flat nozzle.
