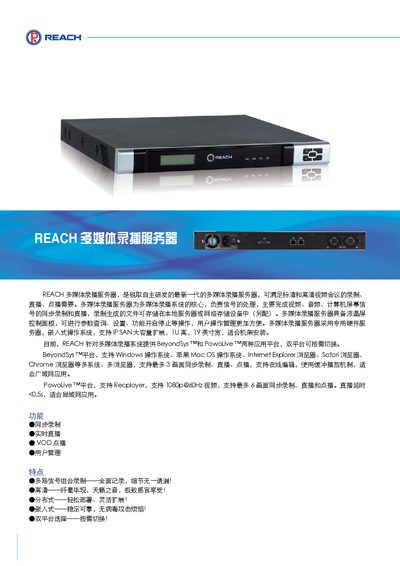

REACH multimedia recording server is the latest generation of multimedia recording server independently developed by REACH, which can meet the needs of SD and HD video conferencing recording, live broadcasting, and on-demand. The multimedia recording server is the core of the multimedia recording system, responsible for signal processing, mainly completes the synchronous recording and live broadcast of video, audio, and computer screen signals, and the recorded files can be stored in the local server or network storage devices (additional). The multimedia recording server has a liquid crystal display control panel, which can query, set, and start and stop functions. User operation and management are more convenient. The multimedia recording server adopts a dedicated hardware server, an embedded operating system, and supports IP SAN large-capacity expansion, 1U high, 19 inches wide, and is suitable for rack mounting.
The REACH multimedia recording and broadcasting server is a 1U rack‑mount device that captures, records, and streams video, audio, and computer screen signals. It provides a liquid‑crystal control panel for parameter setting, user management, and operation control, and supports local or network storage.
The system offers two application platforms—BeyondSys and PowoLive—allowing up to 3 or 6 simultaneous video streams respectively, with support for Windows, macOS, and major browsers. Technical specifications include 220 V/50 Hz power, 60 W consumption, 430 mm × 373 mm × 45 mm dimensions, and environmental ranges from –40 °C to 80 °C. This manual is written in Chinese.
| Operating Voltage | 220V/50Hz |
|---|---|
| Dimensions (L×W×H) | 430mm×373mm×45mm |
| Weight | 8kg |
| Storage Temperature Range | -40~80℃ |
| Relative Humidity Range | 5~95% |
| Operating Temperature Range | -20~60℃ |
| Network Storage Capacity | 500G‑2T |
BeyondSys supports Windows, macOS, Internet Explorer, Safari, and Chrome browsers.
