PCI-1730 is a 32-channel isolated digital input/output card with high voltage isolation protection and wide input range. It is suitable for industrial applications with strong protection capabilities, capable of withstanding voltages up to 2500VDC and providing a maximum of 2000VDC ESD protection. Additionally, it features reset protection to meet the requirements of industrial applications.
The PCI-1730 is a PCI bus card that provides 32 isolated digital I/O channels (16 inputs, 16 outputs) with up to 2500 VDC isolation voltage. It supports a wide input range (5‑30 VDC), high‑ESD protection (2000 VDC) and overload protection (70 VDC). The card complies with PCI Rev2.1 and features automatic configuration of base address and interrupt settings.

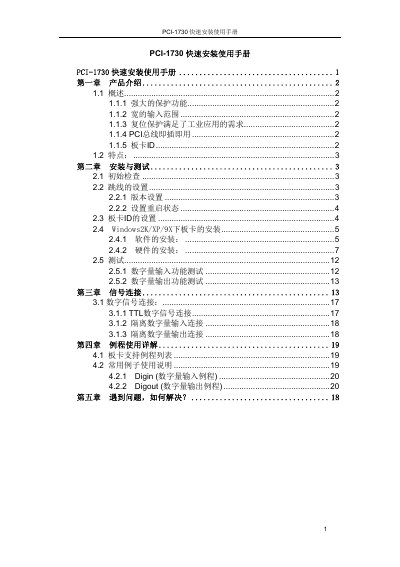

The guide covers product overview, installation steps for Windows 2000/XP/9X, jumper settings, board ID configuration, driver installation, and troubleshooting. It also includes example programs for digital input and output using the Advantech Device Manager and 32‑bit DLL driver. This manual is written in Chinese.
| Isolated digital I/O channels | 32 (16 in, 16 out) |
|---|---|
| TTL digital I/O channels | 32 (16 in, 16 out) |
| Isolation voltage | 2500 VDC |
| ESD protection | 2000 VDC |
| Overload protection | 70 VDC |
| Input voltage range | 5 ~ 30 VDC |
| Connector count | 2 × 20‑pin isolated DIO, 2 × 20‑pin TTL DIO |
The PCI-1730 provides isolation protection up to 2500 VDC.
It offers 32 isolated digital I/O channels, with 16 inputs and 16 outputs.
The card provides up to 2000 VDC of ESD protection.
