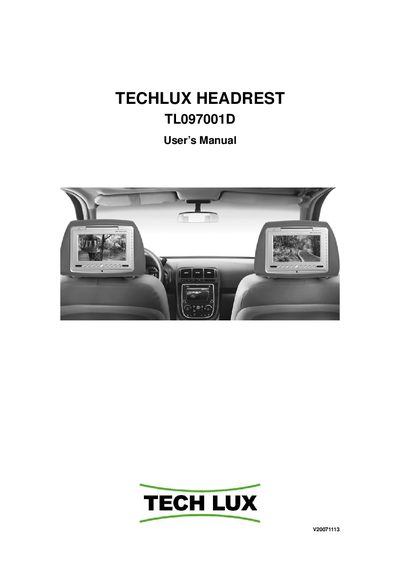

This manual introduces the use of Techlux HEADREST TL097001D, including features, playback discs, safety precautions, operating instructions, accessories, remote control instructions, installation and connection methods.
This manual covers important safety precautions for the Techlux TL097001D headrest, including warnings about laser exposure, moisture, and high‑voltage components. It also explains the features of the headrest such as adjustable pole spacing, built‑in DVD player, wireless FM and infrared audio transmitters, and supported disc formats.
Installation instructions detail how to remove the original headrest, select and install the correct pole size, route power and AV cables, and secure the unit. The document also provides a brief operation guide, troubleshooting tips, technical specifications, and warranty terms.
| Screen size | 7 inch (16:9) |
|---|---|
| Resolution | 2500 |
| Brightness | 350 cd/m² |
| Color system | PAL/NTSC/AUTO |
| Supported discs | DVD, VCD, CD, MP3, CD‑R, CD‑RW, DVD‑RW, DVCD |
| Power supply | DC 12 V (10 V‑14 V allowed) |
| Power consumption (DVD/monitor) | <12 W |
| Power consumption (monitor only) | <7 W |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -30 °C to 7 °C |
| FM transmitter frequencies | 87.8‑88.6 MHz (multiple steps) |
Do not turn on the unit while driving, keep it away from rain or moisture, never open or dismantle the unit, and avoid direct laser exposure.
First remove the original headrest, then select the correct pole size, install the monitor with DVD player, thread power and AV cables through the steel tubes, and finally fix the headrest in the desired position.
The device runs on a DC 12 V supply (acceptable range 10 V to 14 V) and consumes less than 12 W during DVD playback and less than 7 W for the monitor alone.
It can play DVD, VCD, CD, MP3 files, as well as CD‑R, CD‑RW, DVD‑RW, and DVCD discs.
