ES6208L /F1 alarm system is widely used in villa communities, perimeter alarm systems, office buildings and other large-scale security systems. It can be computer-managed and easily integrated with other systems.
The ES6208L /F1 V100 is a versatile alarm system designed for villas, residential compounds, and large security installations. It supports up to 32 zones, 4 partitions, and can be integrated with IP networks and other security devices.

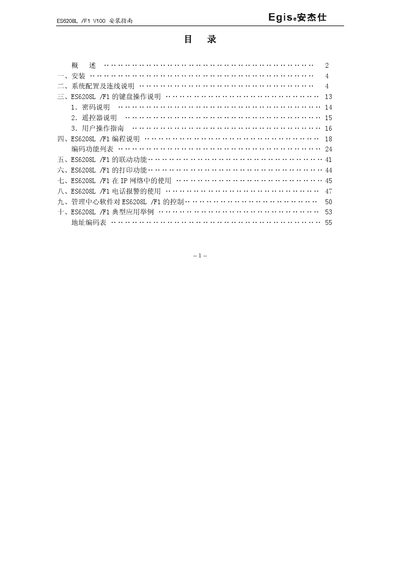

The guide covers system overview, main functions, electrical specifications, wiring connections, zone configuration, and programming steps. Detailed diagrams illustrate power connections, back‑panel layout, and how to connect detectors, alarm outputs, and telephone dialers. This manual is written in Chinese.
| Input voltage | DC 11‑18 V |
|---|---|
| Static power consumption | 300 mA |
| Alarm state current | 850 mA |
| Alarm output current per port | DC 12 V 800 mA |
| Dimensions | 155 × 135 × 32 mm |
| Wireless frequency | 315 MHz |
| Maximum bus length | 1200 m |
| Maximum zones | 32 |
| Maximum partitions | 4 |
| Maximum zone expansion modules | 32 |
It can support up to 32 zones.
The unit operates on DC 11‑18 V.
The wireless module works at 315 MHz.
The device measures 155 × 135 × 32 mm.
