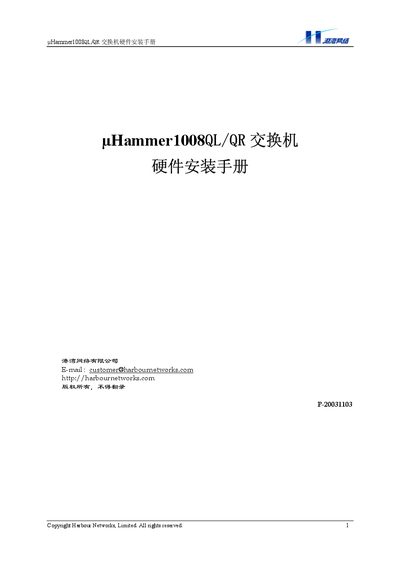

This is the hardware installation manual of µHammer1008QL/QR switch, which details the hardware installation, connection and configuration of the switch.
This guide covers the µHammer1008QL/QR Ethernet switch, a modular, ASIC‑based device offering 8 × 10/100 Mbps ports and an uplink port. It explains the switch’s features, performance specifications, hardware structure, and installation procedures, including safety precautions and remote‑power options.
The document is organized into chapters on product overview, hardware layout, installation steps, LED indicator definitions, cable‑making instructions, and application examples. Appendices provide common fault diagnosis, terminology explanations, RJ‑45 wiring details, and a sample network deployment scenario. This manual is written in Chinese.
